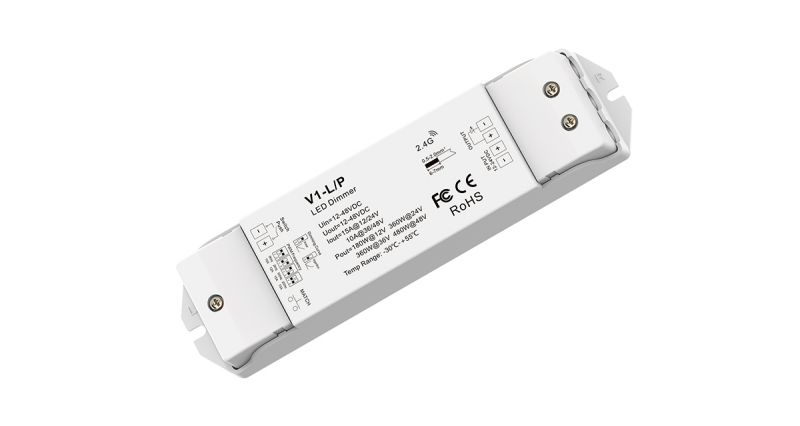

1*15A 2.4G Wireless RF Dimmer
Product Description
Technical parameters
¡ñ Working voltage: 12-48VDC
¡ñ Working current: 15A@12/24V,10A@36/48V
¡ñ Remote distance: 30m
Output type:Constant voltage
¡ñ Output power: 12V@Max 180W,24V@Max 360W,36V@360W,48V@Max 480W
Features
- 4096 levels 0-100% dimming smoothly without any flash
- Match with all 2.4G single zone or multiple zone dimming remote control.
- Four control ways(Push switch handheld remote,wall touch panel remote,and smart phone with WiFi-Relay).
- One RF controller accept up to 10 remote control.
- Connect with external push switch to achieve on/off and 0-100% dimming function.
- logarithmic or linear dimming curve selectable
- PWM frequency 250Hz,500Hz,2kHz or 8kHz selectable.
- Over-heat/Over-load/short circuit protection,recover automatica
